Infrared Probing Systems

Infrared probes are touch trigger probes. When approaching a workpiece surface, the stylus deflects and a trigger signal is transmitted to the receiver by infrared light. Interference-free signal transmission between probe and receiver is absolutely vital for process-reliable measuring on machine tools.

Product Enquiry

Workpieces and tools measuring on the machines with Infrared probing systems

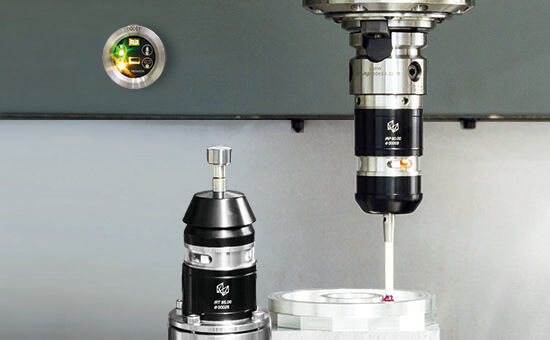

Infrared Probing System ELS
Infrared Probing System ELS

Entry level infrared probing system that consists of touch probe IRP60.00, tool setter IRT65.00 and receiver IRR61.00.

Request info >

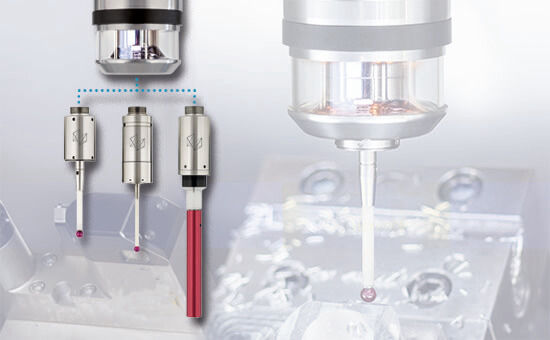

Infrared Probe IRP25.50
Infrared Probe IRP25.50

The IRP25.50 bidirectional probe has a modular structure enabling use of various measuring units, extensions and cross-probes.

Request info >

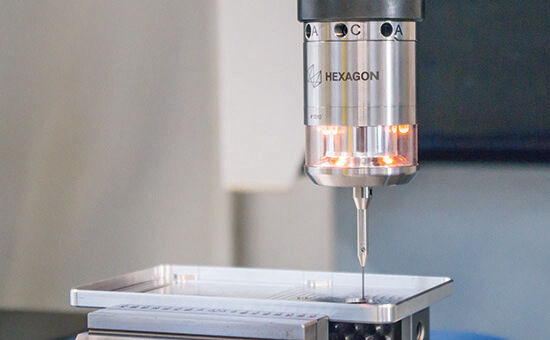

Infrared Probe IRP40.02
Infrared Probe IRP40.02

Thanks to its compact and robust design, the IRP40.02 touch probe can be used for applications in extremely limited spaces.

Request info >
Infrared Probe IRP40.42
Infrared Probe IRP40.42

The IRP40.42 is an infrared touch probe designed for on-machine measurement of sensitive materials and fragile workpieces.

Request info >
Infrared Probe IRP40.50
Infrared Probe IRP40.50

The IRP40.50 ultrasmall infrared probe is ideal for on-machine measurement in small machining centres.

Request info >
Temperature Probe IRP25.50-TP
Infrared Temperature Probe IRP25.50-TP

The IRP25.50-TP temperature probe measures workpiece temperature before and during machining for greater process control.

Request info >
Infrared Tool Setter IRT35.70
Infrared Tool Setter IRT35.70

The IRT35.70 infrared tool setter for milling machines and machining centres enables variable positioning of the tool setter.

Request info >
Infrared Receiver IRR91.42
Infrared Receiver IRR91.42

The IRR91.42 receives measurement and temperature data, and can communicate with infrared probes and infrared tool setters.

Request info >

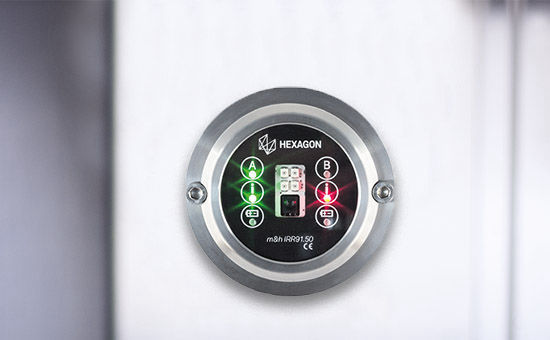

Infrared Receiver IRR91.50
Infrared Receiver IRR91.50

The IRR91.50 bidirectional infrared receiver can simultaneously communicate with two probing systems on the same machine.

Request info >

View Infrared probing systems in Action
